Ø 80 Base nylon complete articulated foot - Galvanized steel stud

Ø 80 Base nylon complete articulated foot - Galvanized steel stud

Characteristics:

Approx. 15 ° lateral adjustment

Base Material:

Fiberglass reinforced Nylon

Stud Material:

Galvanized steel

Stud type:

Articulated (spheric head)

Base type:

Fixable to the ground

Basic outfit:

Non-slip pad included

Remarks:

Base, pad and stud supplied not assembled

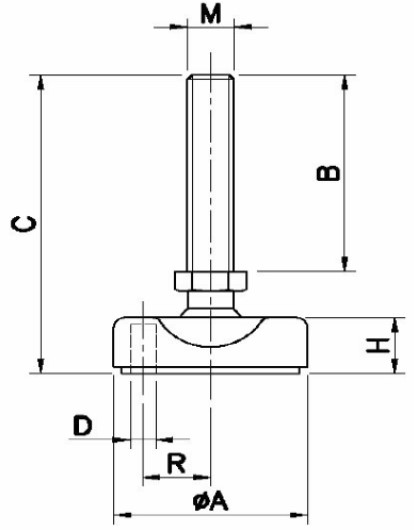

Code	Ø A	B	C	D	H	M	R	Max Load Statico	XBOX
	mm	mm	mm	mm	mm	MA	mm	kg	qty
C.100.602.950	80	65	97	10.5	18	M8	30	1600	24
C.100.603.950	80	30	62	10.5	18	M8	30	1600	24
C.100.604.950	80	60	92	10.5	18	M10	30	1600	24
C.100.605.950	80	100	132	10.5	18	M10	30	1600	24
C.100.606.950	80	60	93	10.5	18	M12	30	1600	24
C.100.607.950	80	130	163	10.5	18	M12	30	1600	24
C.100.608.950	80	100	132	10.5	18	M12	30	1600	24
C.100.609.950	80	60	93	10.5	18	M14	30	1600	24
C.100.610.950	80	75	113	10.5	18	M16	30	1600	24
C.100.611.950	80	140	179	10.5	18	M16	30	1600	24
C.100.612.950	80	75	107	10.5	18	M20	30	1600	24
C.100.613.950	80	140	175	10.5	18	M20	30	1600	24
