Ø 100 Base nylon complete articulated foot - AISI 303 Stainless steel stud

Characteristics:

Approx. 15 ° lateral adjustment

Base Material:

Fiberglass reinforced Nylon

Stud Material:

AISI 303 Stainless steel

Stud type:

Articulated (spheric head)

Base type:

Fixable to the ground

Basic outfit:

Non-slip pad included

Remarks:

Base, pad and stud supplied not assembled

Stainless steel AISI 303 stud

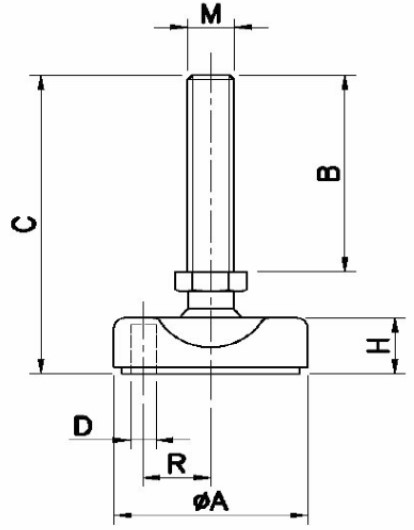

Code

Ø A

B

C

D

H

M

R

Max static Load

 XBOX



mm

mm

mm

mm

mm

MA

mm

kg

qty

C.100.633.950

100

60

93

12.5

18

M12

36.5

1700

12

C.100.634.950

100

130

163

12.5

18

M12

36.5

1700

12

C.100.635.950

100

60

93

12.5

18

M14

36.5

1700

12

C.100.636.950

100

75

113

12.5

18

M16

36.5

1700

12

C.100.637.950

100

140

179

12.5

18

M16

36.5

1700

12

C.100.638.950

100

75

107

12.5

18

M20

36.5

1700

12

C.100.639.950

100

140

175

12.5

18

M20

36.5

1700

12
