Articulated Nylon Foot -Ø 30 base - Galvan.steel stud

Characteristics:

Approx. 15 ° lateral adjustment

Base Material:

Fiberglass reinforced Nylon

Stud Material:

Galvanized steel

Stud type:

Articulated (spheric head)

Base type:

Not fixable to the ground

Basic outfit:

Non-slip pad included

Remarks:

Base, pad and stud supplied not assembled

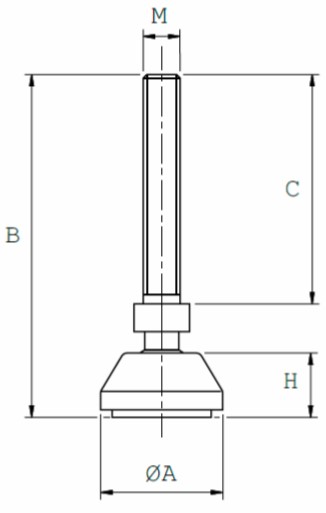

Code

Ø A

B

C

H

M

Max static

load

XBOX



mm

mm

mm

mm

MA

kg

qty

C.100.556.950

30

94

65

17

M8

300

24

C.100.557.950

30

59

30

17

M8

300

24

C.100.558.950

30

89

60

17

M10

300

24

C.100.559.950

30

129

100

17

M10

300

24
