Articulated Nylon Foot - Ø 30 base - AISI 303 S/S stud

Articulated Nylon Foot - Ø 30 base - AISI 303 S/S stud

Characteristics:

Approx. 15 ° lateral adjustment

Base Material:

Fiberglass reinforced Nylon

Stud Material:

Stainless steel AISI 303

Stud type:

Articulated (spheric head)

Base type:

Not fixable to the ground

Basic outfit:

Non-slip pad included

Remarks:

Base, pad and stud supplied not assembled

Stainless steel AISI 303 stud

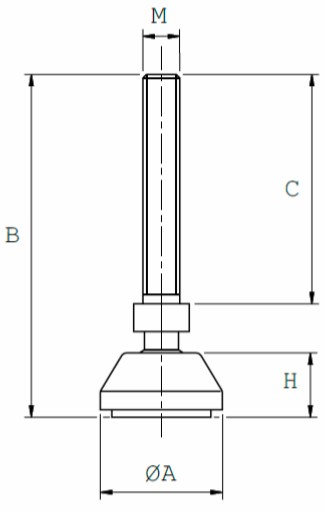

Code	Ø A	B	C	H	M	Max static load	XBOX
	mm	mm	mm	mm	MA	kg	qty
C.100.560.950	30	94	65	17	M8	300	24
C.100.561.950	30	69	40	17	M8	300	24
C.100.562.950	30	89	60	17	M10	300	24
C.100.563.950	30	129	100	17	M10	300	24
