Ø 80 Base nylon complete articulated foot—AISI 303 Stainless Steel stud

Characteristics:

Approx. 15 ° lateral adjustment

Base Material:

Fiberglass reinforced Nylon

Stud Material:

AISI 303 Stainless Steel

Stud type:

Articulated (spheric head)

Base type:

Fixable to the ground

Basic outfit:

Non-slip pad included

Remarks:

Base, pad and stud supplied not assembled

Stainless steel AISI 303 stud

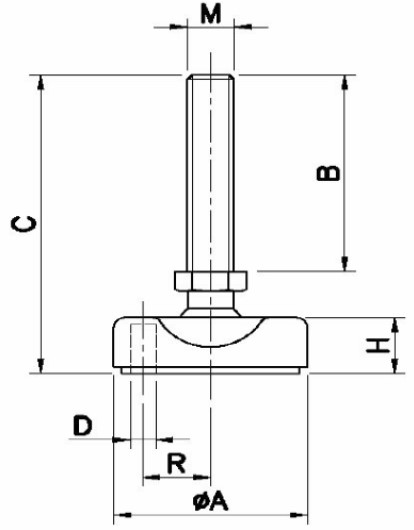

Code

Ø A

B

C

D

H

M

R

Max Load
Statico

 XBOX



mm

mm

mm

mm

mm

MA

mm

kg

qty

C.100.614.950

80

65

97

10.5

18

M8

30

1600

24

C.100.615.950

80

40

70

10.5

18

M8

30

1600

24

C.100.616.950

80

60

92

10.5

18

M10

30

1600

24

C.100.617.950

80

100

132

10.5

18

M10

30

1600

24

C.100.618.950

80

60

93

10.5

18

M12

30

1600

24

C.100.619.950

80

130

163

10.5

18

M12

30

1600

24

C.100.620.950

80

60

93

10.5

18

M14

30

1600

24

C.100.621.950

80

75

113

10.5

18

M16

30

1600

24

C.100.622.950

80

140

179

10.5

18

M16

30

1600

24

C.100.623.950

80

75

107

10.5

18

M20

30

1600

24

C.100.624.950

80

140

175

10.5

18

M20

30

1600

24
