S/S AISI 304 adjustable swivel foot from 1000 kg

S/S AISI 304 adjustable swivel foot from 1000 kg

Base and stud material:

Stainless steel AISI 304

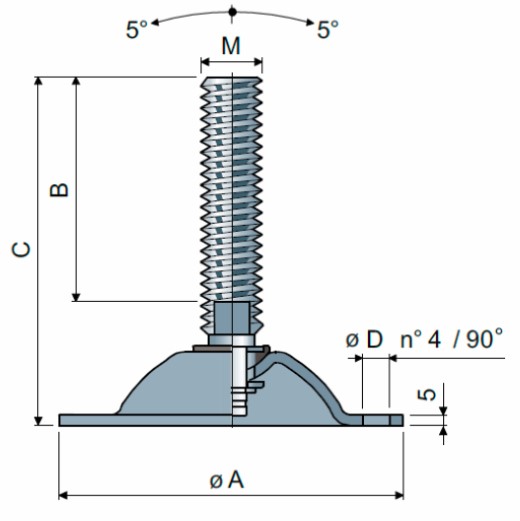

Code	Ø A	B	C	D	M	Wrench	Max static load	XBOX
	mm	mm	mm	mm	MA	mm	kg	qty
C.100.716.950	113	58	100	9	M16	13	1000	8
C.100.717.950	113	119	161	9	M16	13	1000	8
C.100.718.950	113	145	187	9	M16	13	1000	8
C.100.719.950	113	201	243	9	M16	13	1000	8
C.100.720.950	113	157	199	9	M18	15	1000	8
C.100.721.950	113	107	152	9	M20	17	1000	8
C.100.722.950	113	135	180	9	M20	17	1000	8
C.100.723.950	113	157	202	9	M20	17	1000	8
C.100.724.950	113	190	235	9	M20	17	1000	8
C.100.725.950	113	238	283	9	M20	17	1000	8
C.100.726.950	113	90	138	9	M24	19	1000	8
C.100.727.950	113	127	175	9	M24	19	1000	8
C.100.728.950	113	162	210	9	M24	19	1000	8
C.100.729.950	113	202	250	9	M24	19	1000	8
C.100.730.950	113	125	173	9	M30	24	1000	8
C.100.731.950	113	185	233	9	M30	24	1000	8
