Stainless steel adjustable swivel foot max 1200 kg

Stainless steel adjustable swivel foot max 1200 kg

Characteristics:

Stainless Steel

Base Type:

Anti-vibration

Basic Outfit:

NBR pad

Stud material:

Stainless steel

Stud type:

revolving

Remarks:

stud supplied already fitted to the base

Stainless steel AISI 304

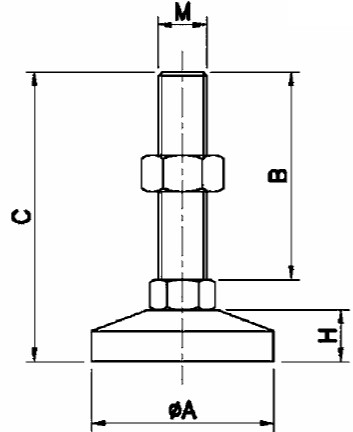

Code	Ø A	B	C	H	M	Max static load	XBOX
	mm	mm	mm	mm	MA	kg	qty
C.100.732.950	60	100	128	20	M12	600	4
C.100.733.950	80	100	133	23	M16	1000	4
C.100.734.950	100	100	133	24	M20	1200	4
