Adjustable swivel foot with base and stud in Stainless Steel AISI 304 max 1500 kg

Adjustable swivel foot with base and stud in Stainless Steel AISI 304 max 1500 kg

Characteristics:

Internal part in reinforced polyamide, external cover in Stainless Steel AISI 304.

Black thermoplastic rubber anti-vibration pad.

Co-moulded anti-slip pad allows a perfect adherence with the steel base.

Therefore the absence of internal cavity makes foot extremely cleanable.

Stainless steel AISI 304

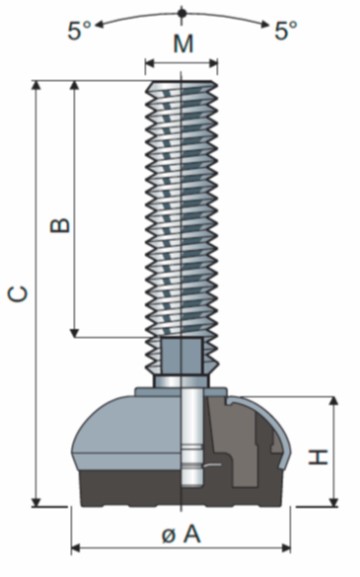

Code	Ø A	B	C	H	M	Wrench	Max static load	XBOX
	mm	mm	mm	mm	MA	mm	kg	qty
C.100.752.950	55	70	110	26	M12	10	1500	8
C.100.753.950	55	108	148	26	M14	12	1500	8
C.100.754.950	55	58	102	26	M16	13	2000	8
C.100.755.950	55	119	163	26	M16	13	2000	8
C.100.756.950	55	145	189	26	M16	13	2000	8
C.100.757.950	55	201	245	26	M16	13	2000	8
C.100.758.950	55	107	151	26	M20	17	2000	8
C.100.759.950	55	135	179	26	M20	17	2000	8
C.100.760.950	55	157	201	26	M20	17	2000	8
C.100.761.950	55	190	234	26	M20	17	2000	8
C.100.762.950	55	238	282	26	M20	17	2000	8
C.100.763.950	55	90	139	26	M24	13	2000	8
C.100.764.950	55	127	176	26	M24	13	2000	8
C.100.765.950	55	162	211	26	M24	13	2000	8
C.100.766.950	55	201	250	26	M24	13	2000	8
C.100.767.950	55	125	174	26	M30	13	2000	8
C.100.768.950	55	185	234	26	M30	13	2000	8
