www.RubberMar.com


Adjustable swivel foot with base and stud in Stainless Steel AISI 304 max 2400 kg

Characteristics:

 Internal part in reinforced polyamide, external cover in Stainless Steel AISI 304.

Black thermoplastic rubber anti-vibration pad.

Co-moulded anti-slip pad allows a perfect adherence with the steel base.

Therefore the absence of internal cavity makes the foot extremely cleanable.

 Stainless steel AISI 304

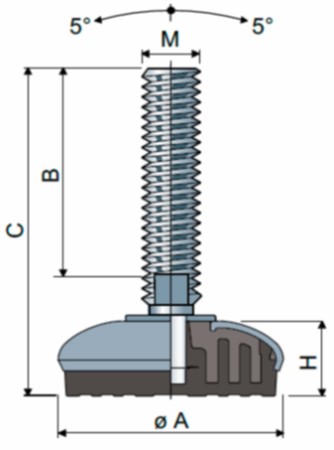

Code

Ø A

B

C

H

M

Wrench

Max static load

 XBOX



mm

mm

mm

mm

MA

mm

kg

qty

C.100.785.950

75

70

109

26

M12

10

1700

8

C.100.786.950

75

108

148

26

M14

12

2400

8

C.100.787.950

75

58

102

26

M16

13

2400

8

C.100.788.950

75

119

163

26

M16

13

2400

8

C.100.789.950

75

145

189

26

M16

13

2400

8

C.100.790.950

75

201

245

26

M16

13

2400

8

C.100.791.950

75

157

201

26

M18

15

2400

8

C.100.792.950

75

107

153

26

M20

17

2400

8

C.100.793.950

75

135

181

26

M20

17

2400

8

C.100.794.950

75

157

203

26

M20

17

2400

8

C.100.795.950

75

190

236

26

M20

17

2400

8

C.100.796.950

75

238

284

26

M20

17

2400

8

C.100.797.950

75

90

139

26

M24

19

2400

8

C.100.798.950

75

127

176

26

M24

19

2400

8

C.100.799.950

75

162

211

26

M24

19

2400

8

C.100.800.950

75

201

250

26

M24

19

2400

8

C.100.801.950

75

125

174

26

M30

24

2400

8

C.100.802.950

75

185

234

26

M30

24

2400

8
