Adjustable swivel foot with base and stud in Stainless Steel AISI 304 max 2600 kg

Adjustable swivel foot with base and stud in Stainless Steel AISI 304 max 2600 kg

Characteristics:

Internal part in reinforced polyamide, external cover in Stainless Steel AISI 304.

Black thermoplastic rubber anti-vibration pad.

Co-moulded anti-slip pad allows a perfect adherence with the steel base.

Therefore the absence of internal cavity makes the foot extremely cleanable.

Stainless steel AISI 304

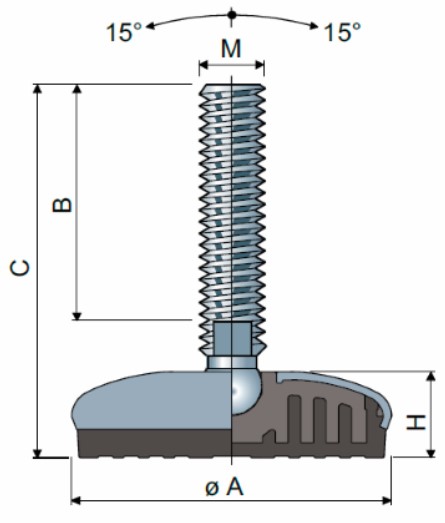

Code	Ø A	B	C	H	M	Wrench	Max static load	XBOX
	mm	mm	mm	mm	MA	mm	kg	qty
C.100.803.950	95	60	103	26	M16	13	2200	8
C.100.804.950	95	90	133	26	M16	13	2200	8
C.100.805.950	95	105	148	26	M16	13	2200	8
C.100.806.950	95	125	168	26	M16	13	2200	8
C.100.807.950	95	155	198	26	M16	13	2200	8
C.100.808.950	95	165	208	26	M16	13	2200	8
C.100.809.950	95	205	248	26	M16	13	2200	8
C.100.810.950	95	86	132	26	M20	17	2400	8
C.100.811.950	95	116	162	26	M20	17	2400	8
C.100.812.950	95	141	187	26	M20	17	2400	8
C.100.813.950	95	206	252	26	M20	17	2400	8
C.100.814.950	95	96	142	26	M24	19	2600	8
C.100.815.950	95	122	168	26	M24	19	2600	8
C.100.816.950	95	152	198	26	M24	19	2600	8
C.100.817.950	95	182	228	26	M24	19	2600	8
C.100.818.950	95	300	346	26	M24	19	2600	8
