Articulated mount with side fixing base and stud in Stainless Steel AISI 304 max 2600 kg

Articulated mount with side fixing base and stud in Stainless Steel AISI 304 max 2600 kg

Characteristics:

Internal part in reinforced polyamide, external cover in Stainless Steel AISI 304.

Black thermoplastic rubber anti-vibration pad.

Co-moulded anti-slip pad allows a perfect adherence with the steel base.

Therefore the absence of internal cavity makes the foot extremely cleanable.

Stainless steel AISI 304

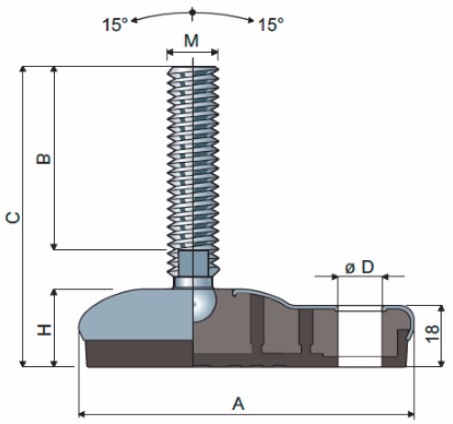

Code	Ø A	B	C	D	H	M	Wrench	Max static load	XBOX
	mm	mm	mm	mm	mm	MA	mm	kg	qty
C.100.837.950	130	60	105	14.5	27	M16	13	2200	8
C.100.838.950	130	90	135	14.5	27	M16	13	2200	8
C.100.839.950	130	105	150	14.5	27	M16	13	2200	8
C.100.840.950	130	125	170	14.5	27	M16	13	2200	8
C.100.841.950	130	155	200	14.5	27	M16	13	2200	8
C.100.842.950	130	165	210	14.5	27	M16	13	2200	8
C.100.843.950	130	205	250	14.5	27	M16	13	2200	8
C.100.844.950	130	86	134	14.5	27	M20	17	2400	8
C.100.845.950	130	116	164	14.5	27	M20	17	2400	8
C.100.846.950	130	141	189	14.5	27	M20	17	2400	8
C.100.847.950	130	206	254	14.5	27	M20	17	2400	8
C.100.848.950	130	96	143	14.5	27	M24	19	2600	8
C.100.849.950	130	122	169	14.5	27	M24	19	2600	8
C.100.850.950	130	152	199	14.5	27	M24	19	2600	8
C.100.851.950	130	182	229	14.5	27	M24	19	2600	8
C.100.852.950	130	300	347	14.5	27	M24	19	2600	8
