Articulated mount with side fixing, base and stud in Stainless Steel AISI 304 max 2700 kg

Articulated mount with side fixing, base and stud in Stainless Steel AISI 304 max 2700 kg

Characteristics:

Internal part in reinforced polyamide, external cover in Stainless Steel AISI 304.

Black thermoplastic rubber anti-vibration pad.

Co-moulded anti-slip pad allows a perfect adherence with the steel base.

Therefore the absence of internal cavity makes the foot extremely cleanable.

Stainless steel AISI 304

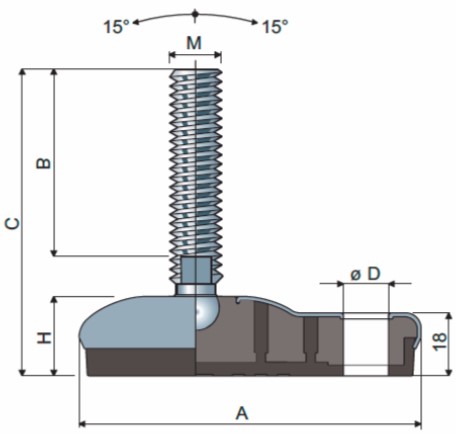

Code	Ø A	B	C	D	H	M	Wrench	Max static load	XBOX
	mm	mm	mm	mm	mm	MA	mm	kg	qty
C.100.853.950	130	70	111	14.5	27	M12	10	1700	8
C.100.854.950	130	108	150	14.5	27	M14	12	2700	8
C.100.855.950	130	58	103	14.5	27	M16	13	2700	8
C.100.856.950	130	119	164	14.5	27	M16	13	2700	8
C.100.857.950	130	145	190	14.5	27	M16	13	2700	8
C.100.858.950	130	201	246	14.5	27	M16	13	2700	8
C.100.859.950	130	157	203	14.5	27	M18	15	2700	8
C.100.860.950	130	107	154	14.5	27	M20	17	2700	8
C.100.861.950	130	135	182	14.5	27	M20	17	2700	8
C.100.862.950	130	157	204	14.5	27	M20	17	2700	8
C.100.863.950	130	190	237	14.5	27	M20	17	2700	8
C.100.864.950	130	238	285	14.5	27	M20	17	2700	8
C.100.865.950	130	90	141	14.5	27	M24	19	2700	8
C.100.866.950	130	127	178	14.5	27	M24	19	2700	8
C.100.867.950	130	162	213	14.5	27	M24	19	2700	8
C.100.868.950	130	201	252	14.5	27	M24	19	2700	8
C.100.869.950	130	125	176	14.5	27	M30	24	2700	8
C.100.870.950	130	185	236	14.5	27	M30	24	2700	8
