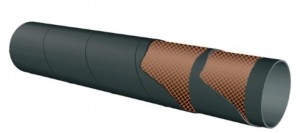

maringas hd r.i.na and lloyd's aproved hoses

APPLICATION:

Drain of exhaust gas and cooling heat exchangers on vessels and ships. It is also used as flexible connection for engine cooling water drainage. R.I.NA and LLOYD’S approved hose.

STRUCTURE:

Sub-layer: smooth black rubber (EPDM) , exhaust gas and sea water resistant .
Inserts: high tenacity synthetic textiles.
Cover: black (EPDM) rubber , abrasion, seawater and atmospheric agents resistant.
Surface: smooth with textile finish.

PACKAGING:

blue polyethylene

WORKING TEMPERATURE:

-25 °C ÷ +100 °C (max peaks 115 °C)

Marking: EUROCORD® MARINGAS/HD- RI.NA NO... SAE J 2006:03 - LLOYD’S APROVED CERT. NR. 02/00029.

Code	XIM00	XIM01	XIM03	XIM04	XIM05	XIM06	XIM07	XIM08
	mm	mm	bar	bar	bar	gr/mt	mm	mt
T.100.795.719	20	30	5	15	-	507	-	20
T.100.796.719	25	35	5	15	-	617	-	20
T.100.797.719	30	40	5	15	-	762	-	20
T.100.798.719	32	42	5	15	-	806	-	20
T.100.799.719	35	45	5	15	-	879	-	20
T.100.800.719	38	48	5	15	-	952	-	20
T.100.801.719	40	50	5	15	-	980	-	20
T.100.802.719	45	55	5	15	-	1136	-	20
T.100.803.719	50	60	5	15	-	1197	-	20
T.100.804.719	60	72	5	15	-	1672	-	20
T.100.805.719	65	77	5	15	-	1799	-	20
T.100.806.719	70	82	5	15	-	1925	-	20
T.100.807.719	76	88	5	15	-	2270	-	20
T.100.808.719	80	91	5	15	-	2040	-	20
T.100.809.719	90	102	5	15	-	2433	-	20
T.100.810.719	102	114	5	15	-	2895	-	20
T.100.811.719	110	124	5	15	-	3489	-	20
T.100.812.719	114	128	5	15	-	3501	-	20
T.100.813.719	120	134	5	15	-	3800	-	20
T.100.814.719	127	141	5	15	-	4009	-	20
T.100.815.719	130	144	5	15	-	4099	-	20
T.100.816.719	140	154	5	15	-	4427	-	20
T.100.817.719	152	167	5	15	-	5066	-	20
T.100.818.719	168	183	5	15	-	5481	-	20
T.100.819.719	175	190	5	15	-	5699	-	20
T.100.820.719	180	195	5	15	-	5855	-	20
T.100.821.719	203	223	5	15	-	8699	-	20
T.100.822.719	254	274	5	15	-	10660	-	20
T.100.823.719	300	320	3	9	-	12550	-	20
T.100.824.719	355	375	3	9	-	14639	-	20
