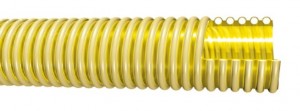

cordflex n.t. r.i.na and lloyd's aproved hoses

APPLICATION:

Delivery and suction of water, inert fluids and food liquids according to the European Standard 2007/19/EC for simulants A-B-C. Particularly suitable in the food industry, in the industrial and agricultural sector, together with suctions pumps in the nautical sector.
Color: transparent yellow with shockproof white spiral.

WORKING TEMPERATURE:

-5 °C ÷ +60 °C

Code	XIM00	XIM02	XIM03	XIM04	XIM05	XIM06	XIM07	XIM08
	mm	mm	bar	bar	bar	gr/mt	mm	mt
T.100.965.719	20	2.7	28	-	7.5	270	85	50
T.100.966.719	25	2.9	22	-	7.5	300	112	50
T.100.967.719	30	3.1	21	-	7.5	380	135	50
T.100.968.719	32	3.2	20	-	7.5	400	144	50
T.100.969.719	35	3.2	19	-	7.5	440	157	50
T.100.970.719	38	3.3	18	-	7.5	470	171	50
T.100.971.719	40	3.5	18	-	7.5	520	180	50
T.100.972.719	45	3.5	17	-	7.5	570	202	50
T.100.973.719	50	3.8	15	-	7.5	690	225	50
T.100.974.719	60	4.0	13	-	7.5	900	270	50
T.100.975.719	70	4.5	12	-	7.5	1080	315	50
T.100.976.719	75	4.6	12	-	7.5	1260	337	50
T.100.977.719	80	4.8	12	-	7.5	1440	360	50
T.100.978.719	90	5.1	11	-	7.5	1620	405	25
T.100.979.719	100	5.9	11	-	7.5	1980	459	25
T.100.980.719	110	6.1	11	-	7.5	2250	495	25
T.100.981.719	120	6.3	10	-	7.5	2520	540	25
T.100.982.719	125	6.6	10	-	7.5	2880	562	25
T.100.983.719	150	7.0	9	-	7.5	3870	675	25
T.100.984.719	200	8.5	7	-	7.5	5850	900	10
