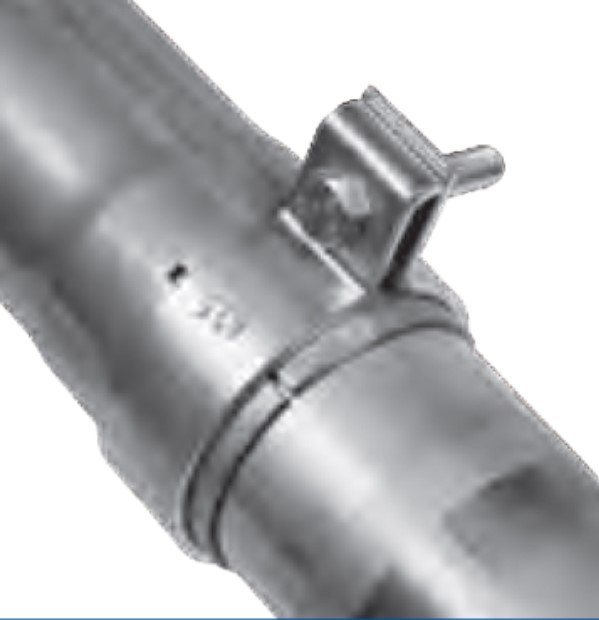

Drainage pipe collars - din 71 555

Drainage pipe collars - din 71 555

Characteristics:

They guarantee high level of tightness of the exhaust gas drainage pipes in light– and heavy duty vehicles.

They are supplied without bolt and nut. Required bolt dimensions:

M8 for 20 and 25 mm tape; M10 for 30 mm tape.

Material:

W1

Item code	Field Ø	Thickness	XBOX	Tape width
W1	mm	mm	items	mm
F.101.127.1936	30.2	2	100	20
F.101.128.1936	32.2		100
F.101.129.1936	35.5		100
F.101.130.1936	37.2		100
F.101.131.1936	40.3	3	100	25
F.101.132.1936	42.3		100
F.101.133.1936	45.5		100
F.101.134.1936	48.5		100
F.101.135.1936	50.5		100
F.101.136.1936	53.5		100
F.101.137.1936	55.5		100
F.101.138.1936	58.5		100
F.101.139.1936	60.5		100
F.101.140.1936	63.5		100
F.101.141.1936	65.5		100
F.101.142.1936	68.5		100
F.101.143.1936	70.5	4	100	30
F.101.144.1936	73.5		100
F.101.145.1936	75.5		100
F.101.146.1936	78.5		100
F.101.147.1936	85.5		100
F.101.148.1936	89.5		100
F.101.149.1936	90.5		100
F.101.150.1936	94.5		50
F.101.151.1936	100.5		50
F.101.152.1936	104.5		50

W1	All components in Chrome IV free galvanized carbon steel.
